UltraGauge features multiple pages of gauges. Pages allow gauges to be conveniently organized and accessed. One page might be configured to display gauges focused on mileage, while another page might focus on engine vitals or trip gauges. A single key press advances the display to the next page.
Pages can be configured to advance automatically to the next page after a configurable time interval.
Once the last page is reached, UltraGauge advances to the first page.
Feature |
UltraGauge |
---|---|
Number of pages |
7 |
Gauges per page |
4,6, or 8 |
Pages can be individually enabled or disabled |
Yes |
Configurable page refresh rate |
Yes* |
Health Indicator |
Yes** |
Open/Closed loop indicator |
Yes** |
Auto page advance |
Yes |
Auto page advance rate configurable |
Per Page |
Same Gauge(s) assigned to multiple pages |
Yes |

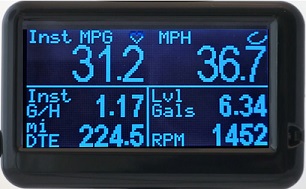

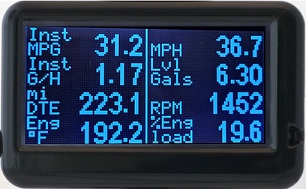

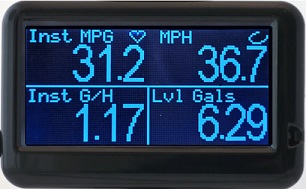

UltraGauge allows each of the seven pages to be independently configured to display 4, 6 or 8 gauges per page. UltraGauge allows a given gauge to be assigned to any page.
Each page configured as 4 or 6 gauges per page also displays the open/closed loop indicator and the UltraGauge health indicator***. The open/closed loop indicator provides a convenient indication of the state of the vehicle's fuel mixture system.
UltraGauge allows for up to 56 gauges to be easily and quickly accessed via its seven pages.
* Faster page refresh rates are not recommended for vehicles with 9141 or KWP2000 protocol (pre-2005 foreign and Chrysler vehicles). See the manual for additional information.
** Indicator is only available when display format is 4 or 6 gauges per page.
*** Diesel vehicles do not support the open/closed loop indicator.
